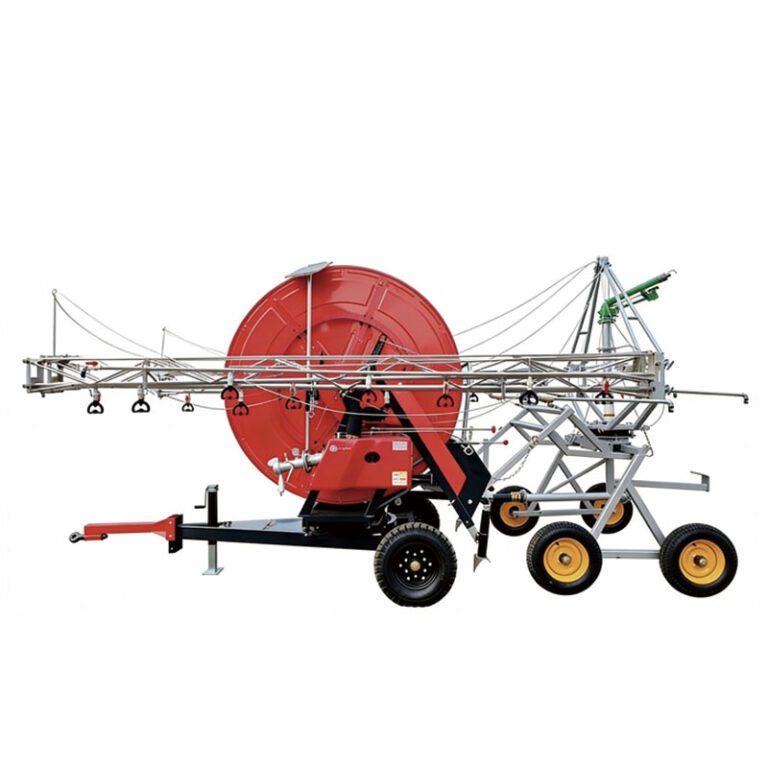

Taishan Four-speed Water Turbine Irrigation Machine 8P75-300/8JP75-400
Covering high-capacity models 8P75-300 and 8JP75-400, this Taishan Four-speed Water Turbine Irrigation Machine features a \ge240mm direct-impact water turbine and a 4-speed gearbox with a 1:1300 transmission ratio. Designed for large-scale fields, it supports PE pipes up to 380m long, a \ge30m sprinkling width, and a 40-70m spray gun radius. Equipped with an ultra-precise speed-measuring wheel ($<$5% error) and an advanced remote phone APP voice alarm system, it delivers highly efficient, automated, and smart water management for modern agriculture.
Product Description
The Taishan 8P75-300 / 8JP75-400 series is a highly automated, heavy-duty, wheel-mounted hose-reel irrigation system engineered for large-scale agricultural crop cultivation. Powered by a high-efficiency direct-impact water turbine combined with a rugged 4-speed variable gearbox, it ensures stable and adjustable hose recovery speeds. With intelligent real-time monitoring and a remote voice alarm system, this irrigation machine maximizes water-use efficiency while drastically reducing manual labor, making it the definitive choice for modern precision farming and high-standard farmland construction.
Core Features:
• Powerful Water Turbine Drive: Driven by a large \ge240mm direct-impact water turbine, providing heavy-duty pulling torque even under stable inlet pressures (0.3–0.4 Mpa).
• 4-Speed Variable Gearbox: Features a premium 4-speed transmission with a high gear ratio of 1:1300, allowing flexible recovery speeds ranging from 10 to 80 m/min to meet diverse crop watering requirements.
• Massive Coverage Capacity: Equipped with high-strength PE pipes (\ge75mm diameter) up to 300m or 380m in length, achieving a generous sprinkling width of \ge30m and a powerful spray gun radius of 40–70 meters.
• Intelligent Speed Measurement: Built-in advanced speed-measuring wheel offers real-time monitoring of instantaneous PE pipe recovery speed with an elite error margin of less than 5%.
• Smart Remote Alarm & APP Integration: Features a cutting-edge voice alert system that automatically dials the operator’s mobile phone during critical near-machine conditions, supported by a mobile APP for real-time remote recovery speed tracking.
| Parameter | Details |
|---|---|
| PE pipe diameter | ≥75mm |
| Recovery speed | 10–80 m/min |
| PE pipe length | ≥300m / ≥380m |
| Inlet pressure | ≥0.3–0.4 Mpa |
| Drive mode | Direct-impact water turbine (diameter ≥240mm) |
| Variable speed gearbox | 4-speed, gear transmission ratio 1:1300 |
| Sprinkling irrigation width | ≥30m |
| Spray gun radius | 40–70m |
| Speed measurement system | Equipped with a speed measuring wheel for real-time monitoring of the instant PE pipe recovery speed, with an error of less than 5%. |
| Remote alarm system | Sends telephone voice alarms to the operator's mobile phone in case of near-machine conditions, and realizes real-time monitoring of recovery speed via a mobile phone APP. |
