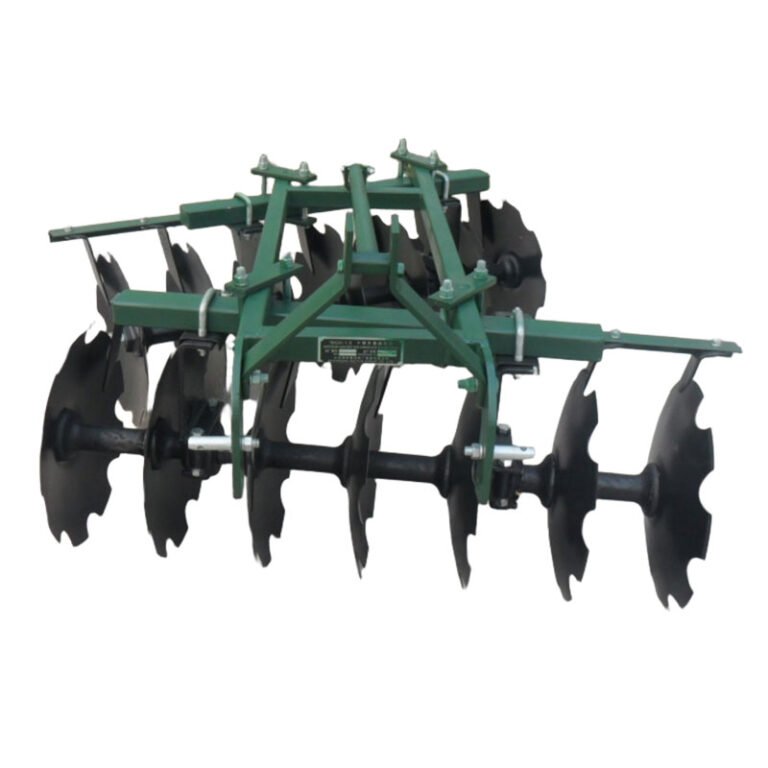

TAISHAN-DISC HARROW 1BQ-1.3/1.5/1.7/2.0/2.2/2.5
Covering various working widths, the 1BQ series middle-duty disc harrow (models 1.3 to 2.5) is equipped with 12 to 24 premium blades, making it the perfect match for 25-80HP tractors. It excels at pulverizing clods, clearing plant stumps, and thoroughly mixing soil with fertilizer before sowing. Featuring a simple yet durable construction, it delivers outstanding soil penetration and leaves a perfectly smooth seedbed to meet the highest standard of intensive cultivation.
Product Description
This middle-duty disc harrow with 12-24 blades is suitable for pulverizing and loosening clods after cultivating and for planning the land before sowing. On cultivated land it can make soil and fertilizer mix up and clear away the stump of plants.
This harrow is simple in construction, durable in service, ready to operate, easy to maintain and efficient in pulverizing and breaking into the soil and leaves the land with a smooth. All these satisfy the agricultural requirements of intensive cultivation. The harrow is best to be used with 25-80hp tractor.
| Parameter | Unit | 1BQ-1.3 | 1BQ-1.5 | 1BQ-1.7 | 1BQ-2.0 | 1BQ-2.2 | 1BQ-2.5 |
|---|---|---|---|---|---|---|---|
| Models | / | 1BQ-1.3 | 1BQ-1.5 | 1BQ-1.7 | 1BQ-2.0 | 1BQ-2.2 | 1BQ-2.5 |
| Weight | kg | 380 | 420 | 460 | 500 | 620 | 700 |
| Working width | mm | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
| Working depth | mm | 140–200 | 140–200 | 140–200 | 140–200 | 140–200 | 140–200 |
| No. of disc | pc | 12 | 14 | 16 | 18 | 20 | 22 |
| Dia of disc | mm | 560/610 | 560/610 | 560/610 | 560/610 | 560/610 | 560/610 |
| Linkage | / | Three-point mounted | Three-point mounted | Three-point mounted | Three-point mounted | Three-point mounted | Three-point mounted |
| Matched power | hp | 25–35 | 35–40 | 40–45 | 45–55 | 55–70 | 70–80 |
