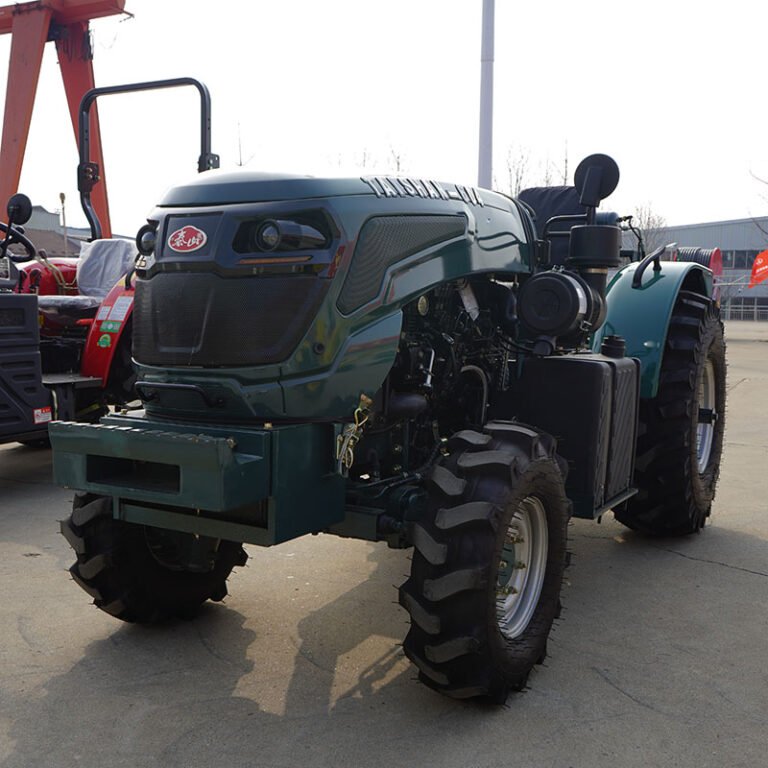

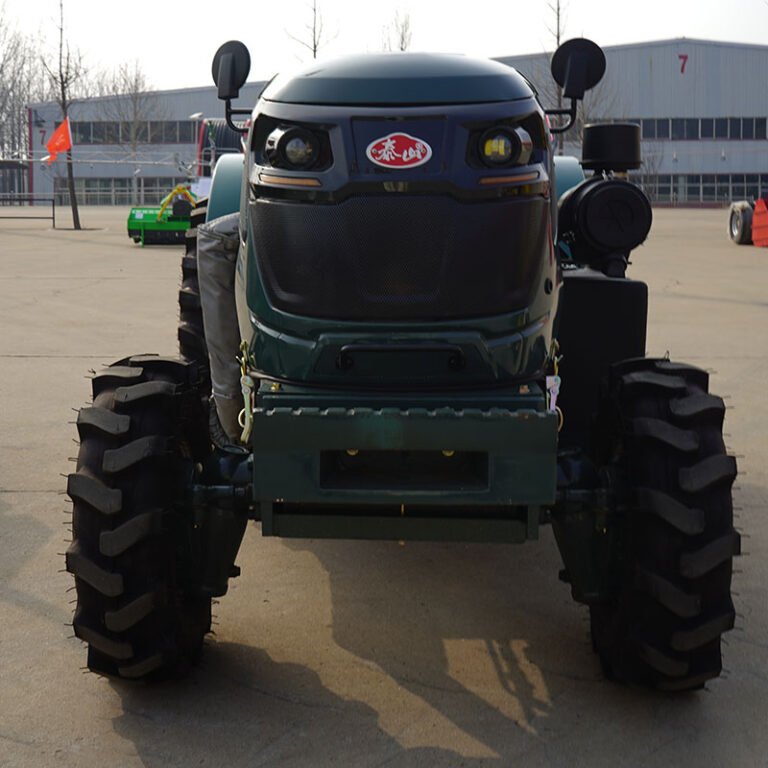

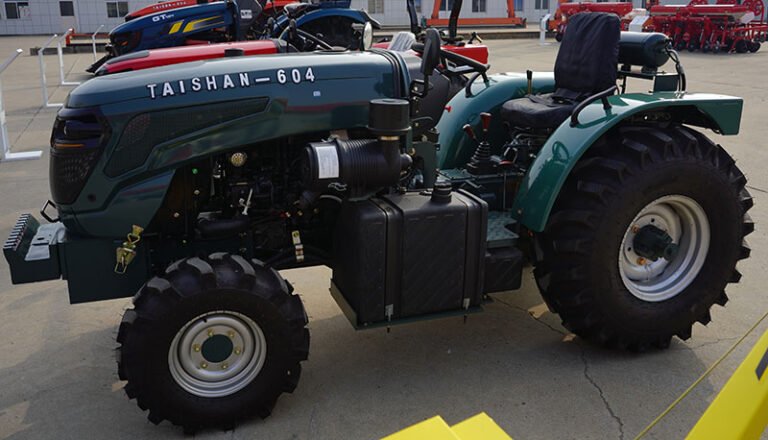

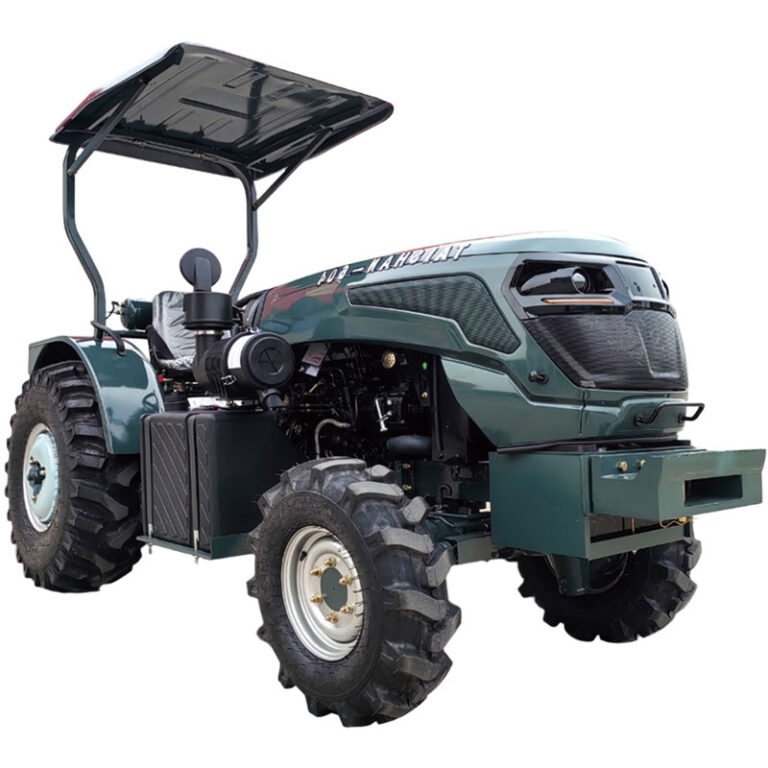

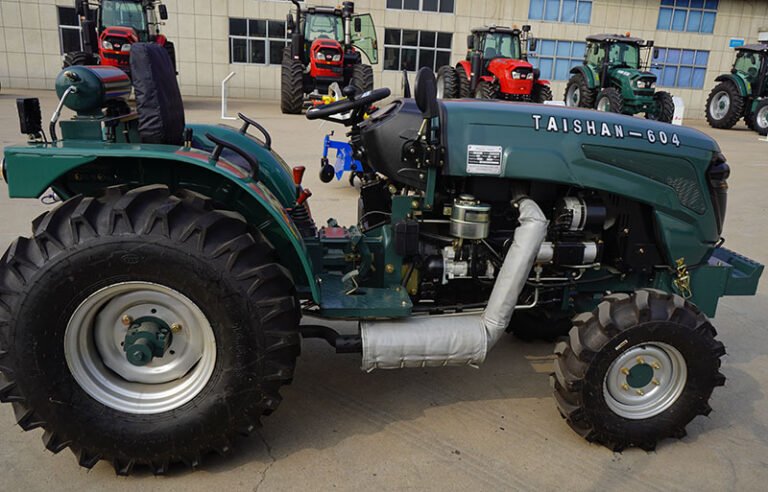

Model E Orchard Tractor (30-40HP)
The Model E Orchard Tractor (30-40HP series, with options up to 50HP) is a high-performance, compact utility tractor masterfully designed for orchards, vineyards, greenhouses, and small-to-medium farms. Measuring just 1300mm in width, it navigates tight rows with exceptional agility. Driven by a high-torque 4-cylinder engine and a reliable 4WD system, it delivers superior traction across muddy or hilly terrains. The 8F+8R shuttle shift transmission and dual-speed PTO (540/1000 rpm) ensure seamless compatibility with diverse implements, while the full hydraulic steering and 898kg lifting capacity maximize field efficiency. Built with a robust chassis and a certified ROPS for ultimate safety, the Model E is your ultimate partner for high-efficiency fruit farming and precise agricultural operations.
Product Description
1. Robust Power & Efficient Transmission Dynamic 50HP Engine:** Equipped with a 2.83L 4-cylinder direct-injection engine, providing high torque and reliable power for demanding tasks. 8F + 8R Shuttle Shift:** Features 8 forward and 8 reverse gears, offering a wide range of speeds to perfectly match different farming implements and conditions. Full Hydraulic Steering:** Effortless and responsive steering for superior maneuverability in tight spaces and orchards.
2. Superior Field Performance Reliable 4WD System:** 4×4 drive ensures maximum traction and stability, making it easy to handle muddy, slippery, or hilly terrain. High Ground Clearance:** A 230mm clearance allows the tractor to pass over crops safely and navigate uneven fields without bottoming out. Compact & Agile Design:** With a width of only 1300mm, it is the ideal choice for greenhouse, vineyard, and small-to-medium farm operations.

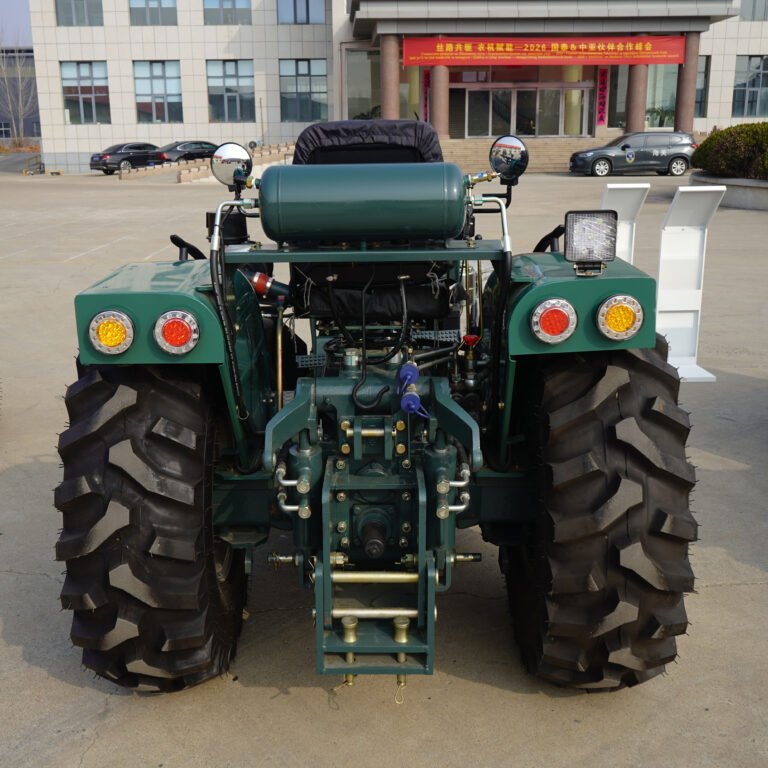

3. Professional Hydraulic & PTO Capability Dual-Speed PTO (540/1000 rpm):** Versatile Power Take-Off speeds allow for seamless compatibility with a vast array of agricultural machinery. Powerful Lifting Capacity:** The high-flow hydraulic system provides an 898kg lift capacity, easily handling heavy rear-mounted implements. Category IN Three-Point Hitch:** Standardized linkage system ensures quick and secure attachment of various plows, harrows, and mowers.
4. Built for Safety & Durability Enhanced Safety (ROPS):** Standard Rollover Protective Structure ensures maximum driver safety during operations in complex environments. Durable Chassis Construction:** A robust 1630kg operating weight provides the necessary grip and stability for heavy-duty towing. Differential Lock & Dry Shoe Brakes:** Overcome wheel slippage with the dog clutch differential lock and enjoy reliable stopping power with the dry shoe braking system.
| Category | Parameter | Value |
|---|---|---|
| Engine | Drive Type | 4WD 4×4 |
| Type | Diesel 4-cylinder 4-stroke Direct Injection 4B5-50M22/Water-cooled | |
| Aspiration | Naturally Aspirated | |
| Power (HP) | 50 | |
| Displacement (cc) | 2830 | |
| Fuel Tank Capacity (L) | 55 | |
| Rated Speed (rpm) | 2400 | |
| Starting System | Electric Start | |
| PTO Output (HP) | 43 | |
| PTO Power (HP) | 43 | |
| Transmission | Number of Gears | 8F + 8R |
| Transmission Structure | (1+1)×4×2 Sliding Sleeve Shift | |
| Min/Max Speed (km/h) | Forward 1.71–27.51; Reverse 1.65–26.45 | |
| Steering | Full Hydraulic | |
| Clutch | Dry Single Plate Single Acting | |
| Brake | Differential Lock | Dog Clutch Type |
| Main Brake | Dry Shoe | |
| Actuation Method | Mechanical Pedal Type | |
| Parking Brake | Hand Brake Lock Plate | |
| Power Take-Off (PTO) | Control Mechanism | Non-Independent |
| PTO Speed | 540 / 1000 | |
| Spline Teeth / Diameter | 6 Splines | |
| Drawbar Included | No | |
| Hydraulic System | Pump Type | Gear Pump (Open Center) |
| Pump Flow (L/min) | 38 | |
| Three-Point Hitch | Category IN | |
| Lift Capacity at 610 mm (kg) | 898 | |
| Dimensions | Lift Capacity with Ball Ends (kg) | / |
| Overall Length (mm) | 3520 | |
| Overall Width (mm) | 1300 | |
| Maximum Width (mm) | / | |
| Height (mm) | 2100 (ROPS Top) | |
| Wheelbase (mm) | 1850 | |
| Minimum Ground Clearance (mm) | 230 | |
| Minimum Turning Radius (mm) | / | |
| Minimum Operating Weight | Weight (kg) | 1630 |
