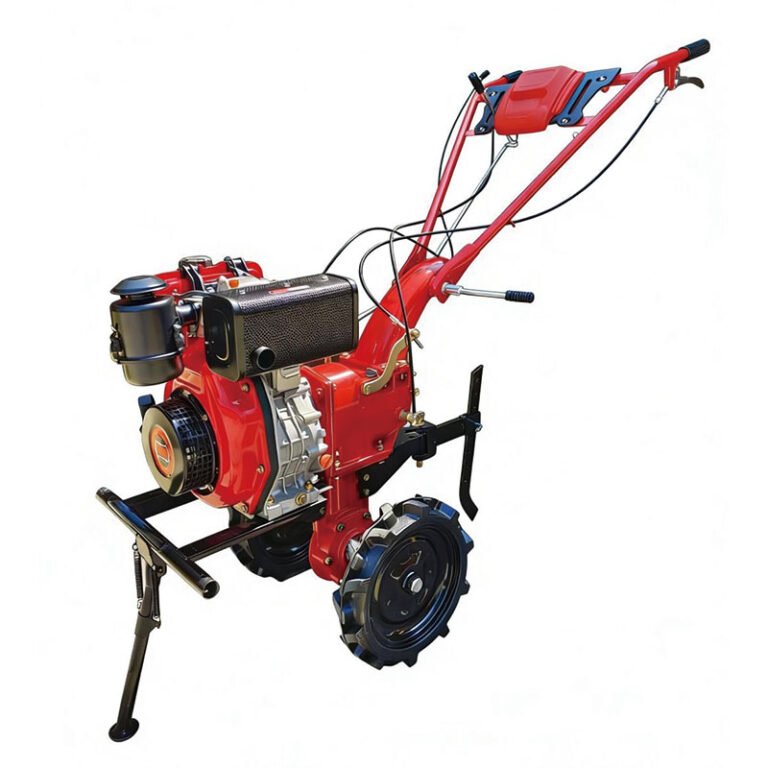

Mini tiller 1WGC4.05-110/1WGC4.1-110/1WGC6.3-120
Engineered for terraces, greenhouses, and orchards, the Taishan 1WGC series mini tiller delivers stable diesel power (up to 6.3kW) and flexible multi-functional performance. Featuring a compact, narrow fuselage, it navigates tight plots with ease. With an efficient direct-gear transmission, a 110-120cm working width, and dual-speed blade rotations, it effortlessly tackles heavy, sticky soils while minimizing operator fatigue through a 120^\circ vertically adjustable handlebar.
Product Description
The core advantages of Taishan Brand Micro-tiller lie in stable power, reliable transmission, flexible operation and multi-functional application. It is suitable for small plot operations such as mountainous and hilly areas, greenhouses and orchards, represented by the model 1WGC4.05-110 with the following outstanding performance:
1. Powerful & Robust Power
Equipped with KM173FA diesel engine with mechanical unit pump, boasting a rated power of 4.05kW and a rated speed of 3600r/min. Adopting recoil start, it features sufficient torque and low fuel consumption, easily tackling heavy and sticky soil conditions with effortless operation.
2. High-efficiency Transmission
Integrated direct power output combined with gear transmission minimizes power loss; the friction plate-type normally open main clutch ensures smooth and durable operation, featuring low failure rate and convenient maintenance for long-term use.
3. Efficient Cultivation Performance
With a working width of 110cm, the cutter roller is equipped with 32 dry land blades and designed with two-speed rotation (1st gear: 80r/min, 2nd gear: 145r/min). This dual-speed setting perfectly meets the requirements of different cultivation intensities for diverse farmland operations.
4. Flexible & User-friendly Operation
Designed with a handheld structure, the handle can be vertically adjusted by 120°, adapting to operators of different heights and various working postures for easy single-person operation. Its narrow fuselage enables access to small plots that are unreachable for large agricultural machinery.
5. Multi-functional Application

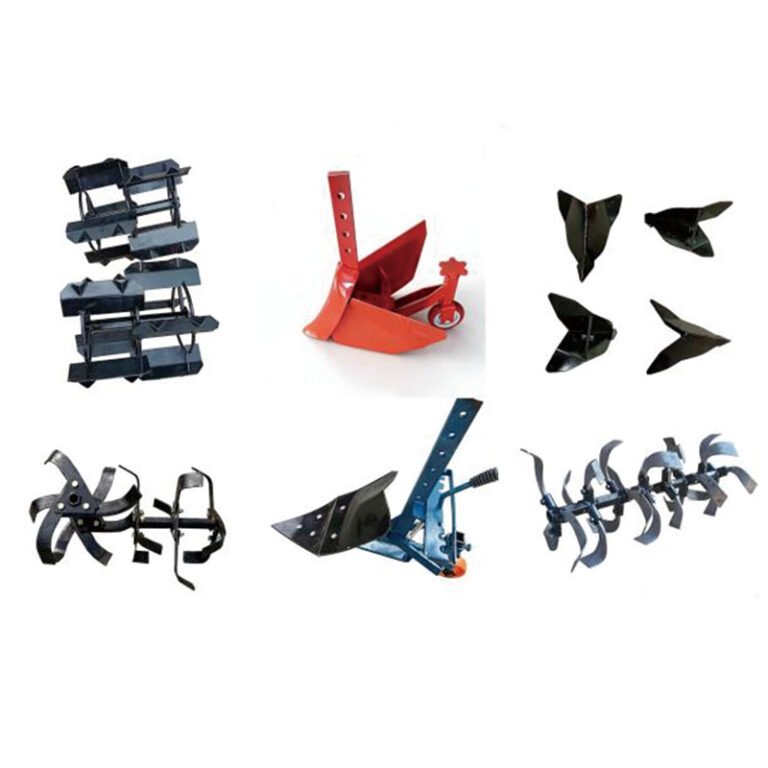

By changing the blades, the micro-tiller can realize multiple operations including rotary tillage, ditching, ridging and weeding. It is well-adapted to various terrains such as Yunnan and other mountainous and hilly regions, greatly improving the operation efficiency of small plots and effectively reducing labor intensity.
| Parameter | Unit | 1WGC4.05-110 | 1WGC4.1-110 | 1WGC6.3-120 |
|---|---|---|---|---|
| Model | / | 1WGC4.05-110 | 1WGC4.1-110 | 1WGC6.3-120 |
| Main Clutch Status | / | Normally Open | Normally Open | Normally Open |
| Main Clutch Type | / | Friction Disc Type | Friction Disc Type | Friction Disc Type |
| Rotary Tiller Blade Type | / | Dry Land Blade | Dry Land Blade | Dry Land Blade |
| Total Number of Blades Mounted on Cutter Roller | / | 32 | 32 | 32 |
| Maximum Swing Radius of Cutter Roller | mm | 180 | 180 | 180 |
| Designed Rotating Speed of Cutter Roller | r/min | Gear I: 80; Gear II: 145 | Gear I: 80; Gear II: 145 | Gear I:60; Gear II: 110; Gear III: 150 |
| Handle Adjustment Range (Vertical Direction) | (°) | 120 | 120 | 200 |
| Handle Adjustment Range (Horizontal Direction) | (°) | 0 | 0 | 0 |
| Cutter Roller Transmission Mode | / | Gear Drive | Gear Drive | Gear Drive |
| Engine Output Transmission Mode | / | Direct Connection | Direct Connection | Direct Connection |
| Working Width | mm | 1100 | 1100 | 1200 |
| Fuel Consumption per Unit Operating Area | kg/hm² | ≤30 | ≤30 | ≤30 |
| Hourly Operating Productivity | hm²/(h·m) | ≥0.03 | ≥0.04 | ≥0.04 |
| Handle Vibration | m/s² | ≤130 | ≤130 | ≤130 |
| Operating Speed | m/s² | 0.1~0.3 | 0.1~0.3 | 0.1~0.3 |
| Overall Dimensions (L×W×H) | mm | 16501100900 | 17001100950 | 220012001200 |
| Fuel Type | / | Diesel | Diesel | Diesel |
| Starting Mode | / | Pull Start | Pull Start | Pull Start |
| Rated Speed | r/min | 3600 | 3600 | 3600 |
| Rated Power | KW | 4.05 | 4.1 | 6.3 |
| Engine Manufacturer | / | Changzhou KOOP | Changzhou KOOP | Changzhou KOOP |
| Engine model | / | KD173FB4 | KDGS350F4 | KD192FW4 |
| Structure Type | / | Hand-held | Hand-held | Hand-held |
