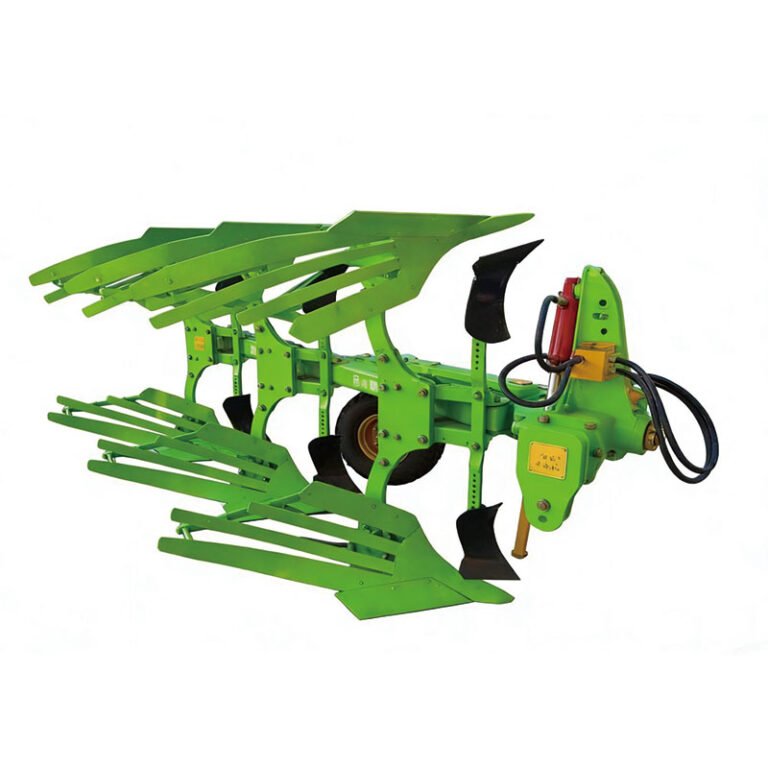

Hydraulic Reversible Plow 1LFYT-345/1LFYT-440
The 1LFYT-345/1LFYT-440 Hydraulic Reversible Plow features automated hydraulic overturning, eliminating manual lifting for effortless, high-efficiency operations. Built with a thickened manganese steel frame and wear-resistant points, this versatile plow offers adjustable deep tillage to easily break the plow pan, improve soil aeration, and handle everything from hilly plots to large-scale barren land reclamation. Fully adaptable to diverse horsepower tractors, it ensures rapid turnover response, clean stubble retention, and perfect seedbed preparation for modern mechanized farming.
Product Description
It realizes automatic plow body overturning via a hydraulic system—no manual lifting or turning required, enabling efficient and labor-saving operation. As a key device for farmland plowing and soil preparation, it is widely applicable to plowing dry and cultivated land on diverse terrains such as plains and hills, as well as for wasteland reclamation and soil tillage after straw returning. Adaptable to tractors of different horsepower, it meets the needs of fine operation on small plots and continuous plowing on large fields. The equipment features a thickened manganese steel plow body and wear-resistant plow points for excellent bending and impact resistance, with flexibly adjustable deep plowing depth. It boasts fast overturning response and neat stubble retention during operation, effectively breaking the plow pan and improving soil aeration to create high-quality seedbeds for subsequent sowing and transplanting. It greatly boosts tillage efficiency, reduces labor costs, and is fully suited for the large-scale and mechanized farming demands of modern agriculture.
| Parameter | Unit | 1LFYT-345 | 1LFYT-440 |
|---|---|---|---|
| Model | / | 1LFYT-345 | 1LFYT-440 |
| Type | / | Mounted | Mounted |
| Overall Dimensions (L×W×H) | mm | 3800×1920×1750 | 4450×2230×1750 |
| Matched Tractor Power Range | kW | 110.3 ~ 139.7 | 110.3 ~ 139.7 |
| Turning Mechanism Type | / | Hydraulic, Semi-reversible | Hydraulic, Two-way Hydraulic Reversible Plow |
| Plow Body Type | / | Basic Type | Basic Type |
| Number of Plow Blade | / | 3+3 | 4+4 |
| Plow Blade Width | mm | 450 | 400 |
| Plow Share Type | / | Ladder Type, Replaceable Share Tip Type | Grid Type |
| Plow Blade Type | / | Grid Type, combined Type | Grid Type, combined Type |
| Total Working Width | mm | 1350 | 1350 |
| Longitudinal Spacing | mm | 1150 | 1150 |
| Plow Wheel Type | / | Depth Limited and Transport Wheel | Depth Limited and Transport Wheel |
| Number of Plow Wheels | / | 1 | 1 |
| Depth Limiting Wheel Adjustment Range | mm | 0 ~ 100 | 0 ~ 100 |
