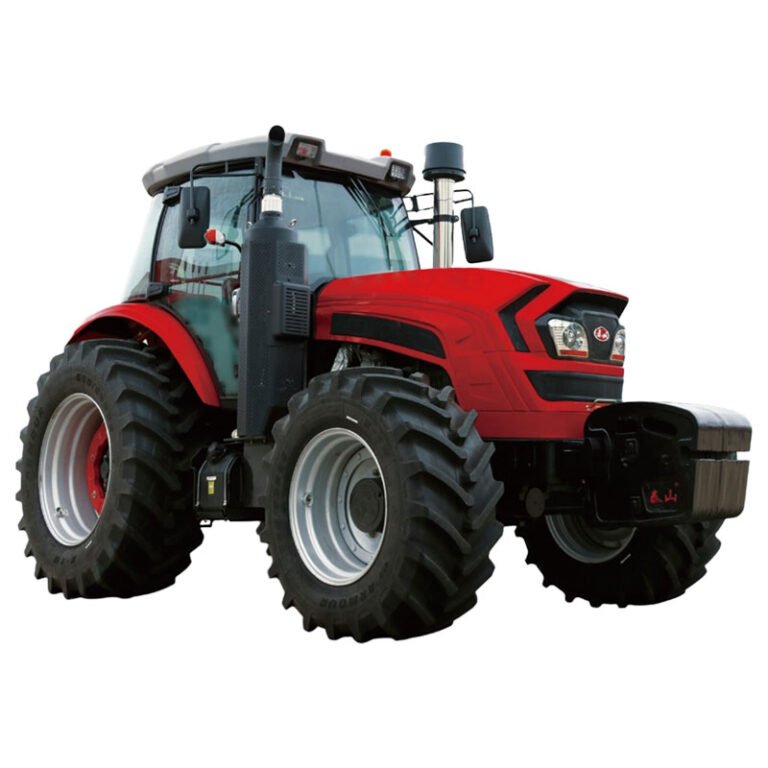

Model S Farm Tractor (180-220hp)

Dominate the most extreme agricultural challenges with the heavy-duty Model S Farm Tractor (180-220HP). This 7-ton giant unleashes 200HP from a premium 6-cylinder turbocharged engine, routing 170HP directly to the PTO for heavy balers and large chippers. It redefines large-scale field efficiency with a precision 16F+16R synchronizer gearbox, an ultimate 450mm ground clearance, and an unparalleled 500L fuel reservoir for multi-day endurance. Operators experience supreme control via hydrostatic wet disc brakes and a towering 3300mm safety ROPS. Equipped with a lightning-fast 88 L/min hydraulic pump and a 3.6-ton Category III lifting capacity, the Model S is the ultimate high-horsepower investment for precision tillage.

Product Description

Product Description

1. 200HP 6-Cylinder Turbocharged Dominance
High-Torque 6-Cylinder Engine:** Features a massive 6.44L 6-cylinder engine with **Turbocharging & Intercooling**, delivering 200HP of relentless power for the most extreme heavy-duty tasks.
Advanced 16F + 16R Synchronizer Shift:** High-end transmission with 16 forward and 16 reverse gears, featuring a synchronizer structure for seamless, high-efficiency gear changes.
Massive 170HP PTO Output:** Professional-grade power takeoff delivering 170HP to the most demanding large-scale implements like heavy square balers and large wood chippers.
2. Industry-Leading Endurance & Ground Clearance
Ultra-Giant 500L Fuel Tank:** The massive 500-liter fuel capacity sets a benchmark for ultra-long endurance, minimizing downtime and maximizing productivity on vast agricultural estates.
Maximum Ground Clearance (450mm):** An impressive 450mm clearance allows this heavy giant to navigate complex terrains and deep ruts without compromising speed or safety.
Giant 3000mm Wheelbase:** The longest-in-class 3-meter wheelbase ensures rock-solid stability and maximum traction when pulling the heaviest multi-row combined plows.
3. Professional High-Flow Category III Hydraulics
Superior 88 L/min High-Flow Pump:** The 88L/min high-capacity hydraulic pump provides lightning-fast and precise response for advanced, multi-functional hydraulic implements.
Elite Category III Lifting (3600kg):** Massive 3.6-ton lift capacity at 610mm ensures total control over the heaviest global-standard agricultural machinery.
Versatile PTO Spline Options:** Supports 540/1000 rpm with 6, 8, or 21-spline shaft options, ensuring seamless compatibility with high-end international attachments.
4. Ultimate Heavy-Duty Build & Comfort
Precision Hydrostatic Wet Disc Brakes:** Features an advanced hydrostatic actuation system for wet disc brakes, providing consistent and powerful stopping force for its 7-ton mass.
Extreme Operating Weight (7050kg):** Weighing over 7 tons, the G2004 provides the ultimate soil pressure and traction required for professional-scale land reclamation and deep tillage.
High-View Safety ROPS (3300mm):** The towering 3.3-meter air-filter top structure offers the operator a commanding view and the highest level of protection in all environments.

CategorySpecificationDetails
EngineDrive Type4WD 4×4
TypeDiesel, 6-cylinder, 4-stroke, Direct Injection, SC7H200G2/Water-cooled
AspirationTurbocharged & Intercooled
Power (HP)200
Displacement (cc)6440
Fuel Tank Capacity (L)500
Rated Speed (rpm)2200
Starting SystemElectric Start
PTO Output (HP)170
TransmissionPTO Power (HP)170
Number of Gears16F + 16R
Transmission Structure(1+1)×4×4, Synchronizer+Sliding Sleeve Shift
Min/Max Speed (km/h)Forward 3.1–30.7; Reverse 2.7–26.2
SteeringFull Hydraulic
ClutchDry, Single Plate, Dual Acting
BrakeDifferential LockPin Type
Main BrakeWet Disc
Actuation MethodHydrostatic Brake
Parking BrakeIndependent Hand Brake
Power Take-Off (PTO)Control MechanismIndependent
PTO Speed540 / 1000
Spline Teeth / Diameter6/8/21 Splines Optional
Drawbar IncludedNo
Hydraulic SystemPump TypeGear Pump (Open Center)
Pump Flow (L/min)88
Three-Point HitchCategory III
Lift Capacity at 610 mm (kg)3600
DimensionsLift Capacity with Ball Ends (kg)/
Overall Length (mm)5600
Overall Width (mm)2570
Maximum Width (mm)/
Height (mm)3300 (Air Filter Top)
Wheelbase (mm)3000
Minimum Ground Clearance (mm)450
Minimum Turning Radius (mm)/
Minimum Operating WeightWeight (kg)7050
