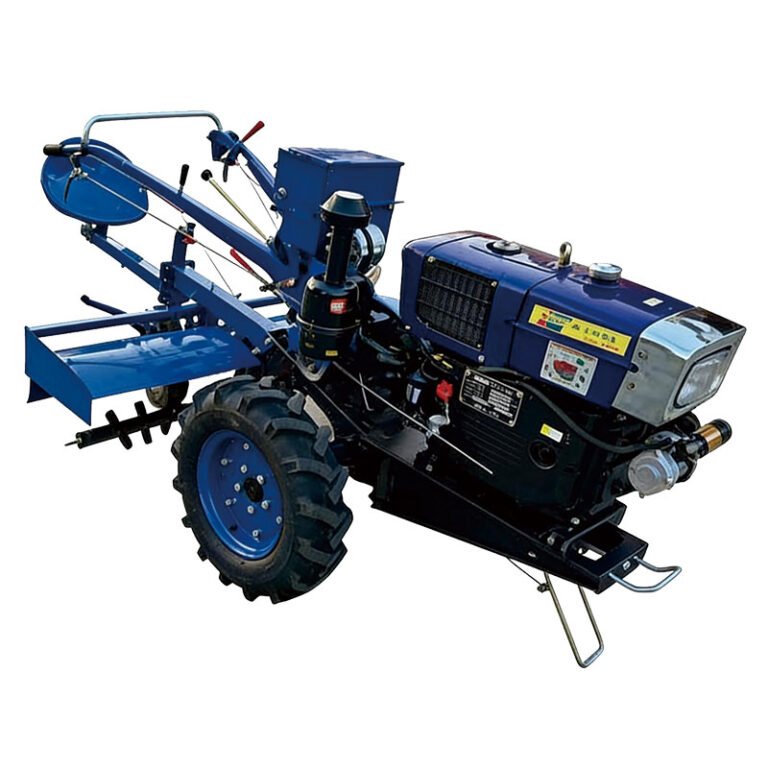

Walking Tractor Product Description
Driven by a rugged internal combustion engine and a high-torque transmission, this versatile Walk-Behind Tractor (often called a garden tractor in Western markets) is a compact powerhouse engineered for traction and transportation. Its simple structure and reliable power output make it perfectly suited for small plots, terraced farms, and greenhouses. With ergonomic handlebars for effortless steering, it effortlessly pairs with diverse implements to tackle plowing, rotary tilling, sowing, harvesting, and hauling.
Product Description
A walking tractor is a type of compact tractor, referred to as a garden tractor in Europe and America. It is a versatile walk-behind machine mainly used for traction and transportation, consisting of the engine, chassis, electrical system and other core components.
The walking tractor achieves movement by converting the power of its internal combustion engine into driving torque via the transmission system. The drive wheels then exert a small, backward horizontal force (tangential force) on the ground through the tire tread and surface; this reaction force serves as the driving force (also called propulsive force) that propels the tractor forward.

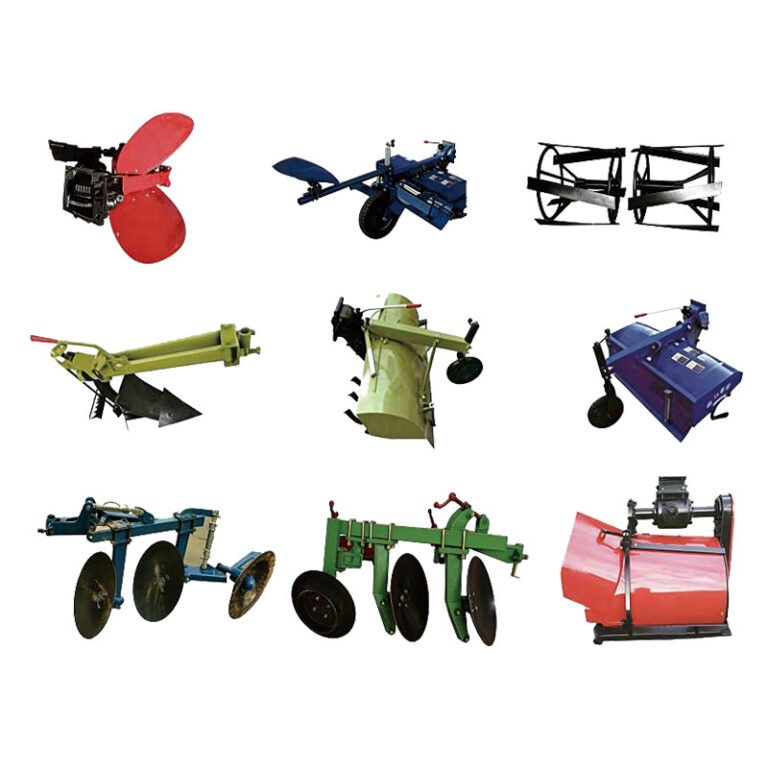

Featuring a simple structure and moderate power output, it is ideally suited for small plots of farmland. The operator steers the machine by holding the handlebar frame to control the operating mechanisms, and the tractor can either tow or drive matched farm implements to perform a wide range of agricultural operations, including plowing, rotary tillage, sowing, harvesting, ditching, irrigation, threshing and transportation.
| Parameter | Unit | Value |
|---|---|---|
| Model | 101/102 | |
| Engine type | Single cylinder, horizontal 4–Stroke direct Injection | |
| Engine model | 190/195/1105/1100/1110/1115 | |
| No. of gears | 6F+2R | |
| Clutch Type | Single Friction Disc | |
| Rated Speed | r/min | 2200 |
| Cooling Type | Evaporative Water Cooling | |
| Overall Dimensions (LWH) | mm | 21808601250 |
| Lubrication Type | Pressure–Splash–Spray Lubrication | |
| Rotary Tiller Blade Quantity | pcs | 24 |
| Starting Type | Electric Start | |
| Rotary Tiller Working Width | mm | 1200 |
| Tire size | 600–12 | |
| Rated Traction Force | 2200 | |
| Chassis Type | Traction and Drive | |
| Walking Tractor Type | Single Axle, Dual–purpose for Traction and Drive | |
| Min. Ground Clearance | mm | 220 |
| Compression Ratio | 17 | |
| Wheel Track | mm | 640–860 |
