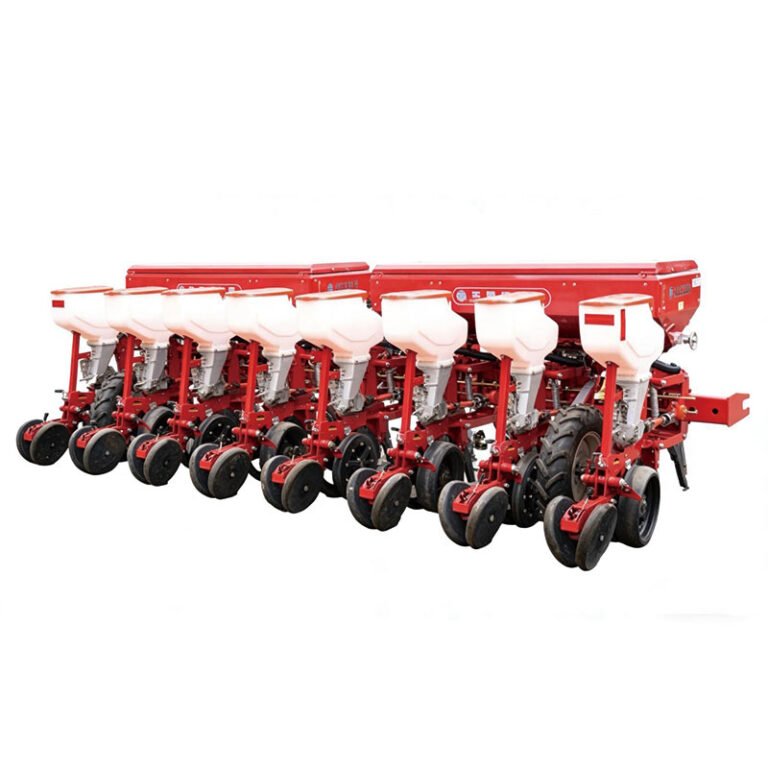

Taishan Air-suction Single-seed Precision Seeder 2BYQF-4E/2BYQF-5E/2BYQF-6E/2BYQF-8E
Covering 4 to 8-row models, the 2BYQF series precision seeder features imported premium air-suction seed meters to deliver high-precision, low-miss sowing at fast speeds for diverse crops. Built with a four-bar linkage profiling structure that floats smoothly over uneven terrain, it boasts a fully enclosed, dust-proof chain transmission box for extended life. With a front ditching shovel and advanced dual-disc openers, it minimizes soil disturbance while its heavy-duty, safety-pin protected fertilization mechanism ensures rigid, anti-damage field performance.
Product Description
1. Equipped with imported high-quality air-suction precision seed metering devices, it is suitable for sowing a variety of crops, featuring high seeding precision, low miss rate and fast operating speed.
2. The seeder assembly adopts a four-bar linkage profiling structure that floats up and down with the terrain integrally. Its fully enclosed chain box for the seeding transmission system prevents dust ingress and extends service life.
3. A front ditching shovel is added to the seeding unit, making it suitable for summer sowing areas. The dual-disc ditching mechanism combined with seed guide tube creates narrow seed furrows with minimal soil disturbance.
4. A heavy-duty fertilization mechanism is fitted with high rigidity and safety pins, ensuring excellent anti-damage performance.
| Parameter | Unit | 2BYQF-5A | 2BYQF-6A | 2BYQF-8A |
|---|---|---|---|---|
| Model | / | 2BYQF-5A | 2BYQF-6A | 2BYQF-8A |
| Matched Power | kW | 58.8–95.5 | 66.18–110.3 | 89.5–134.2 |
| Operating Speed Range | km/h | 8–10 | 8–10 | 8–10 |
| Overall Machine Dimensions (L×W×H) | mm | 2280×2830×1470 | 2280×3430×1500 | 2280×4830×1500 |
| Working Rows | / | 5 | 6 | 8 |
| Row Spacing | cm | 60 | 60 | 60 |
| Working Width | cm | 300 | 360 | 480 |
