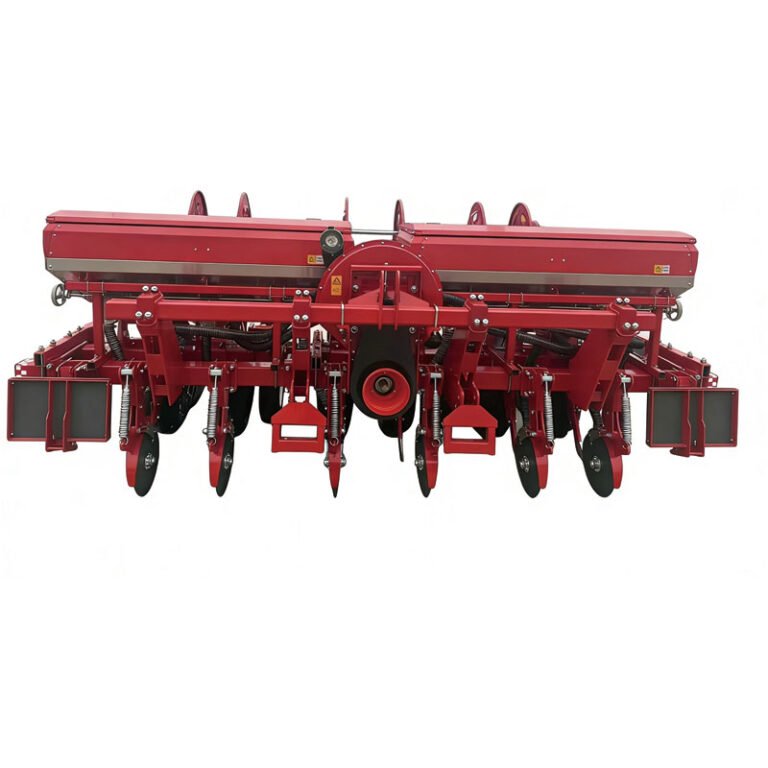

Taishan Air-suction fertilizing seeder 2BYQF-5A/2BYQF-6A/2BYQF-8A
Covering 5, 6, and 8-row configurations, the 2BYQF-A series features imported air-suction seed meters ideal for fast, high-performance, multi-crop sowing on large spring and summer plots. Its advanced seeding assembly utilizes a synchronous profiling structure to ensure consistent working depth and uniform plant spacing. Equipped with heavy-duty fertilizing openers for deep chemical application and shear-pin safety protection, it also boasts an assembled hopper with a 30% increased fertilizer capacity to significantly reduce refilling downtime.
Product Description
1. Air-suction fertilizing seeder with imported air-suction seed metering devices, boasting fast operation, excellent seeding performance and multi-crop compatibility. Ideal for large plots in spring and summer sowing areas.
2. The seeding assembly features a synchronous profiling structure, ensuring consistent working depth and uniform plant spacing.
3. Heavy-duty fertilizing openers enable deep chemical fertilizer application. Equipped with shear pins that cut off in abnormal conditions to protect openers and the frame from damage.
4. Assembled fertilizer hopper with a 30% increased capacity.
| Parameter | Unit | 2BYQF-5H | 2BYQF-6H | 2BYQF-8H |
|---|---|---|---|---|
| Model | / | 2BYQF-5H | 2BYQF-6H | 2BYQF-8H |
| Matched Power | kW | 58.8–95.5 | 66.18–110.3 | 89.5–134.2 |
| Operating Speed Range | km/h | 8–10 | 8–10 | 8–10 |
| Overall Machine Dimensions (L×W×H) | mm | 2280×2830×1470 | 2280×3430×1500 | 2280×4830×1500 |
| Working Rows | / | 5 | 6 | 8 |
| Row Spacing | cm | 60 | 60 | 60 |
| Working Width | cm | 300 | 360 | 480 |
